100 Watt Flexible Panel Kits
100 Watt Flexible Panel Kits
Solar Kits
You have been asking for a complete kit that is compatible with your power station and they are available now!!
The multitude of adapters that COME WITH EVERY KIT make the package highly compatible with almost every power station on the market.
Jackery, Bluetti, EcoFlow, Anker, Goal Zero, Oupes, BioLite,...; you name it - we are compatible!
Select the type of mounting that works for your application. No backing, flexible mounting, or rigid mounting. See the links above for more info.
Dont see your power station in the photos? Thats OK! Check your user manual for Voltage input or feel free to CONTACT US HERE!
100W Kit
100W Kit
Best used for power stations such as: Jackery 600 Plus, Ecoflow River 2 Pro, Ecoflow Delta Mini

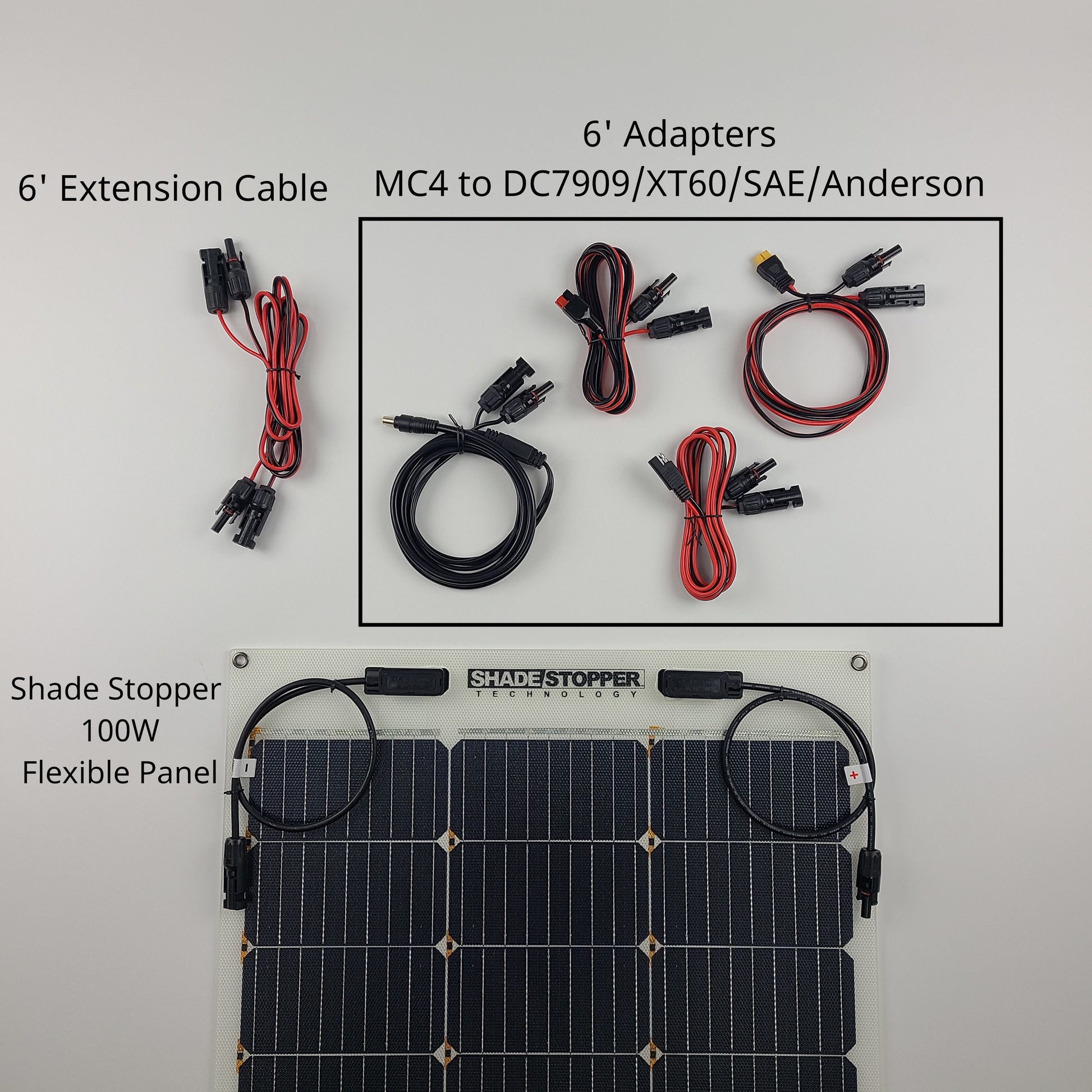

Whats in the box
x1 Shade Stopper Flexible panel
x1 of each 6' MC4-DC7090/XT60/SAE/Anderson adapter cable (14 AWG)
x1 6' extension cable (14AWG)

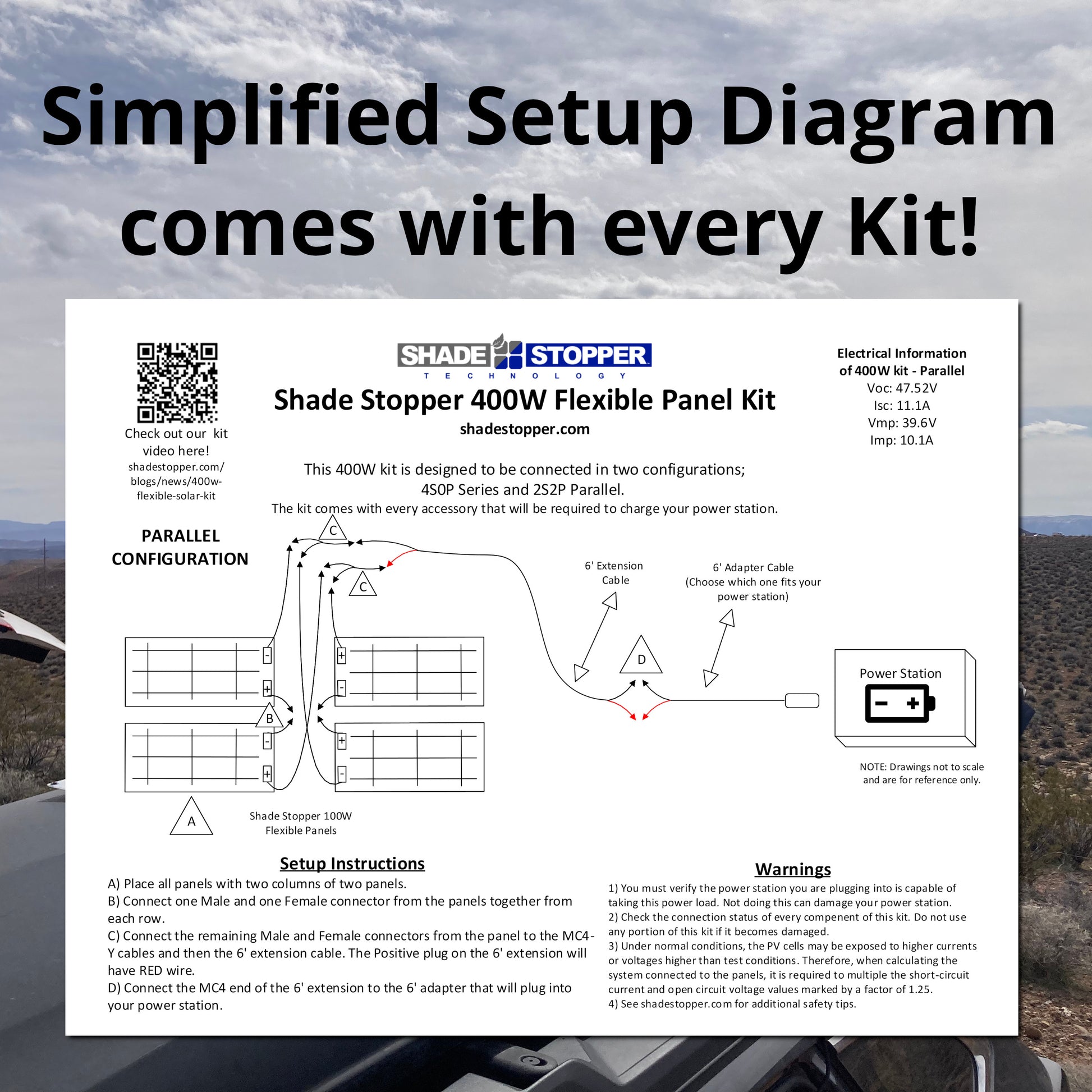

x1 Simplified electrical setup diagram
Tech Specs
Voc: 23.76V
Isc: 5.55A
Vmp: 19.8V
Imp: 5.05A

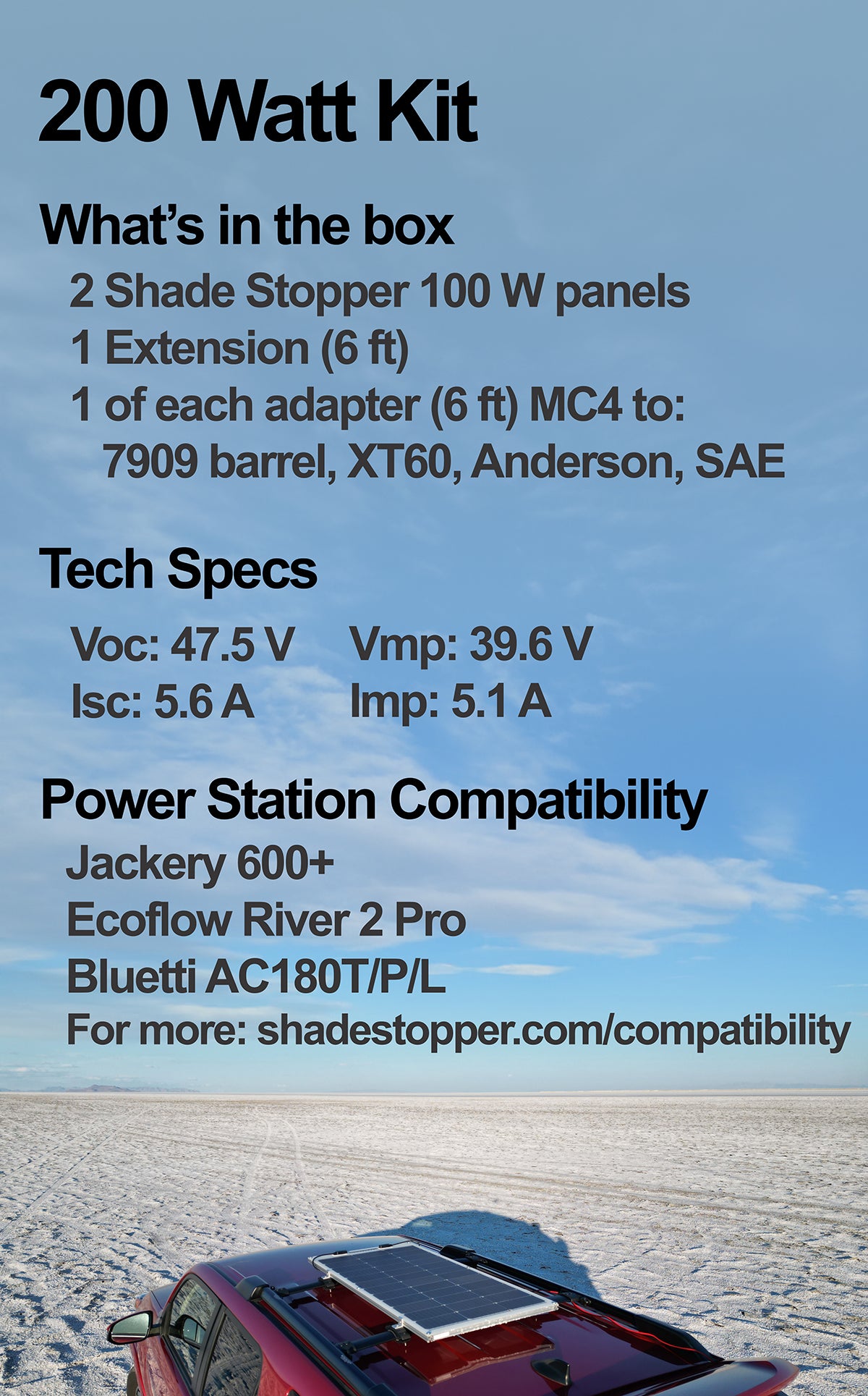

200W Kit
200W Kit
Best used for power stations such as: Jackery 600 Plus, Ecoflow River 2 Pro, Ecoflow Delta Mini

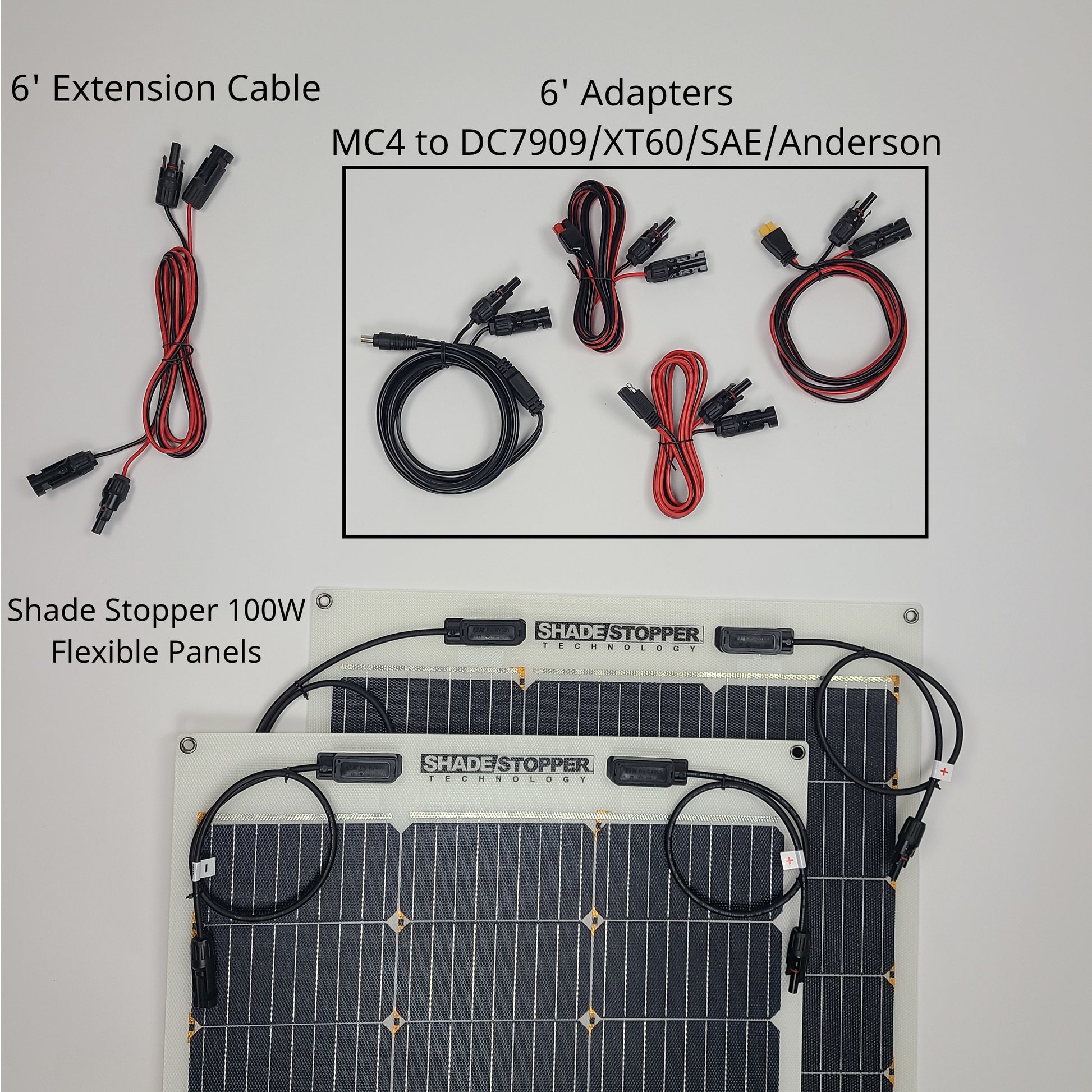

Whats in the box
x2 Shade Stopper Flexible panels
x1 of each 6' MC4-DC7090/XT60/SAE/Anderson adapter cable (14 AWG)
x1 6' extension cable (14AWG)
x1 Simplified electrical setup diagram
Tech Specs
Voc: 47.52V
Isc: 5.55A
Vmp: 39.6V
Imp: 5.05A

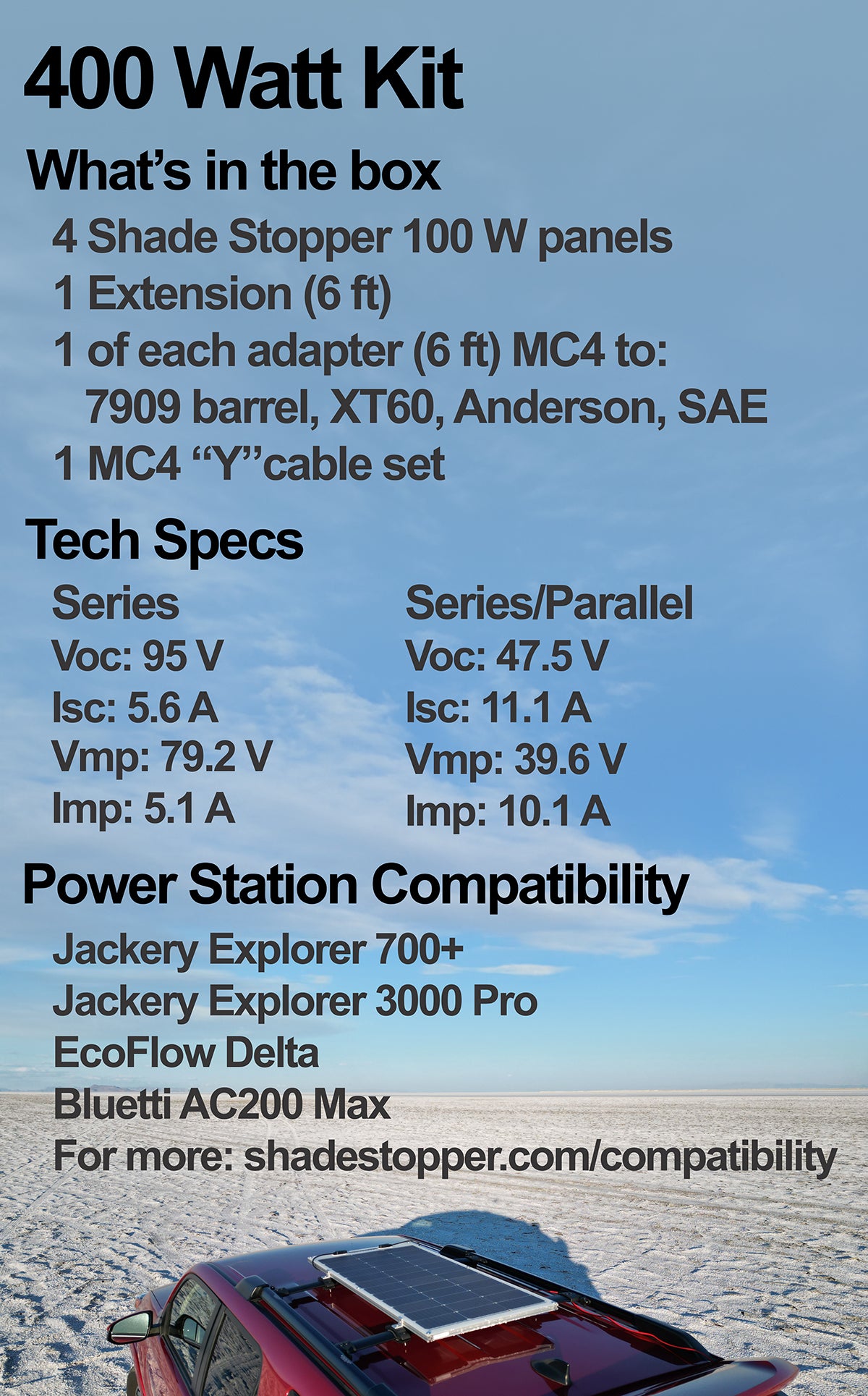

400W Kit
400W Kit
Best used for power stations such as: Jackery 700 Plus, Ecoflow Delta, Bluetti AC180P

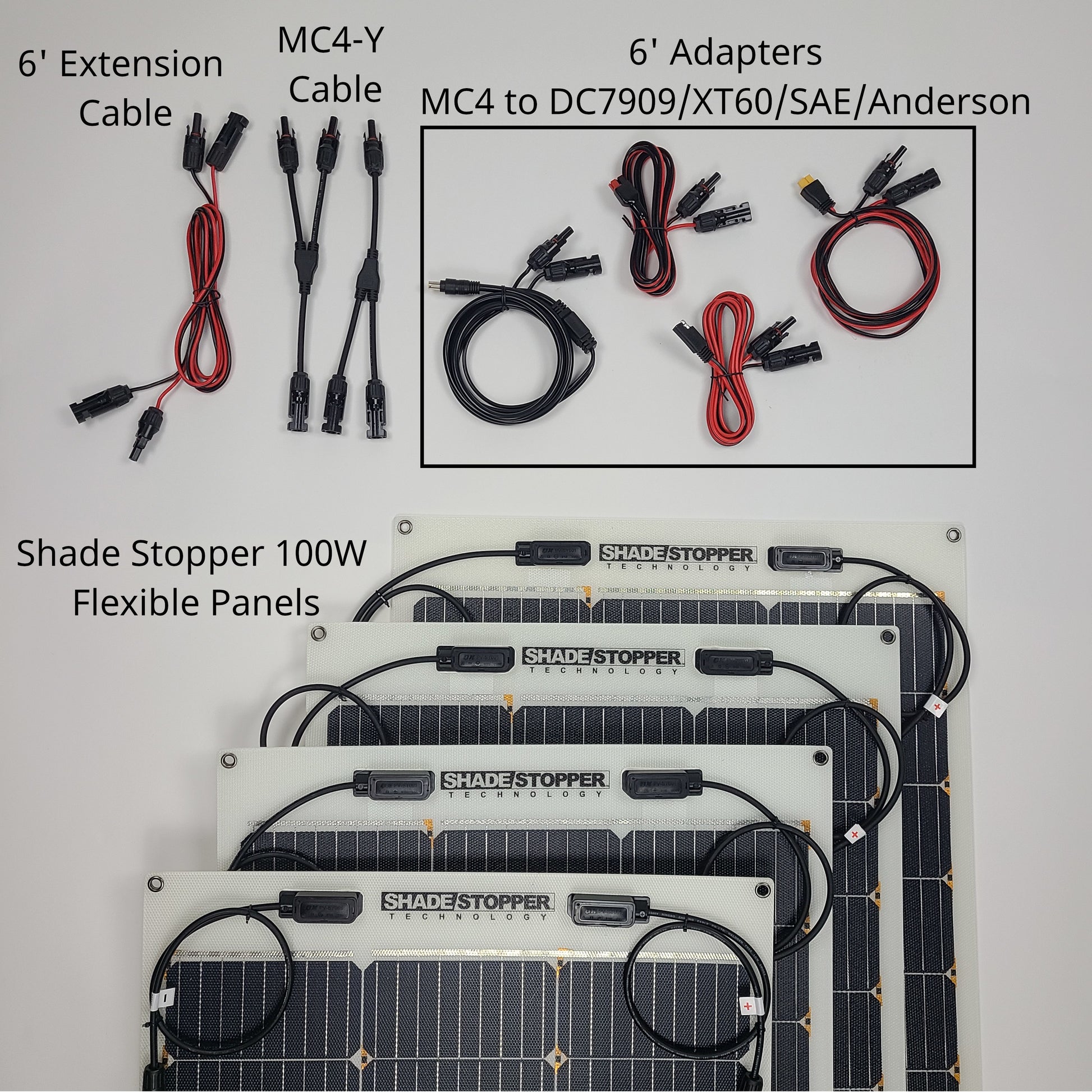

Whats in the box
x4 Shade Stopper Flexible panels
x1 of each 6' MC4-DC7090/XT60/SAE/Anderson adapter cable (14 AWG)
x1 6' extension cable (14AWG)
x1 MC4-Y combiner cable
x1 Simplified electrical setup diagram
Tech Specs
Series Mode
Voc: 95.04V
Isc: 5.55A
Vmp: 79.2V
Imp: 5.05A
Parallel Mode
Voc: 47.52V
Isc: 11.1A
Vmp: 39.6V
Imp: 10.1A

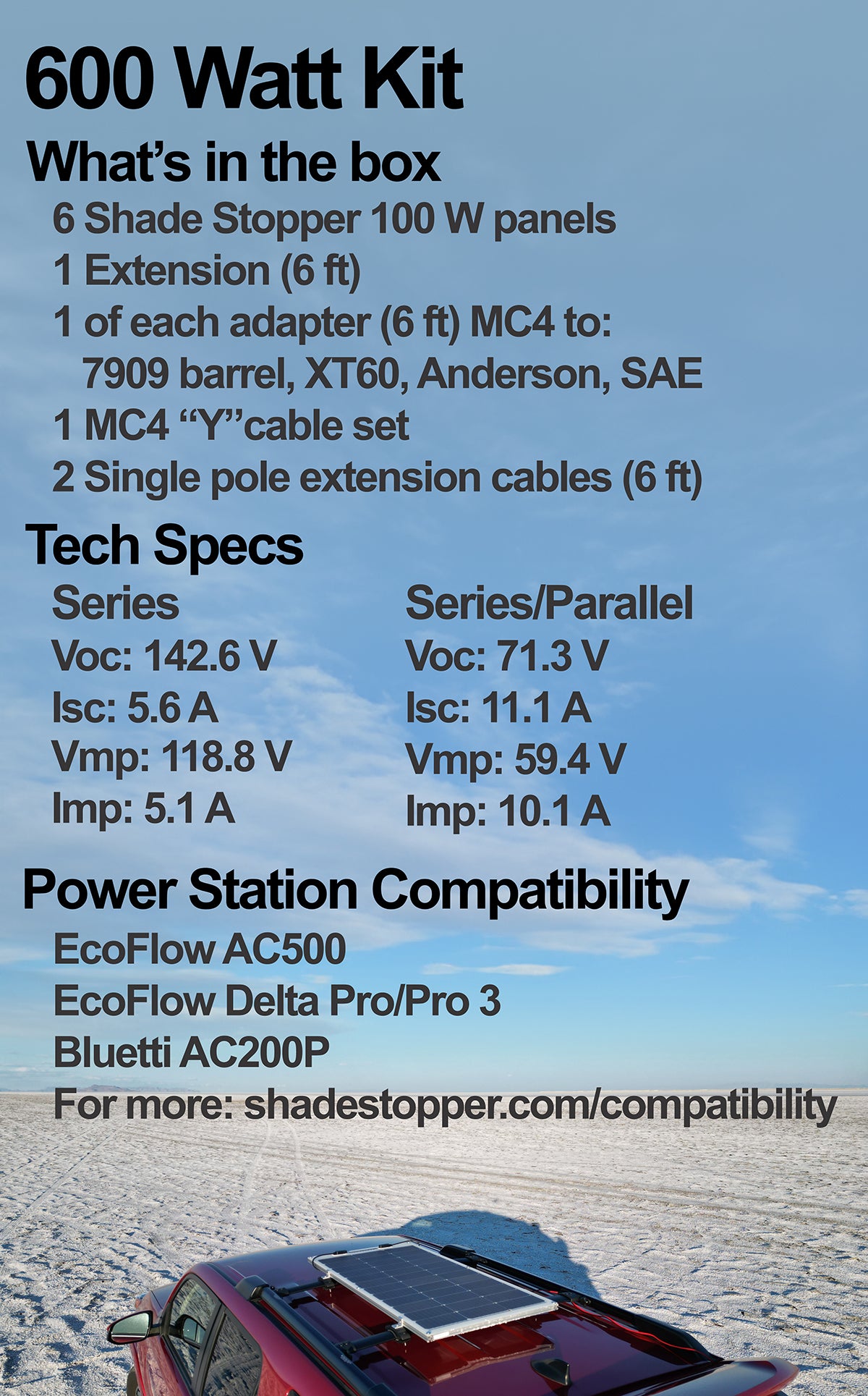

600W Kit
600W Kit
Best used for power stations such as: Bluetti AC200P

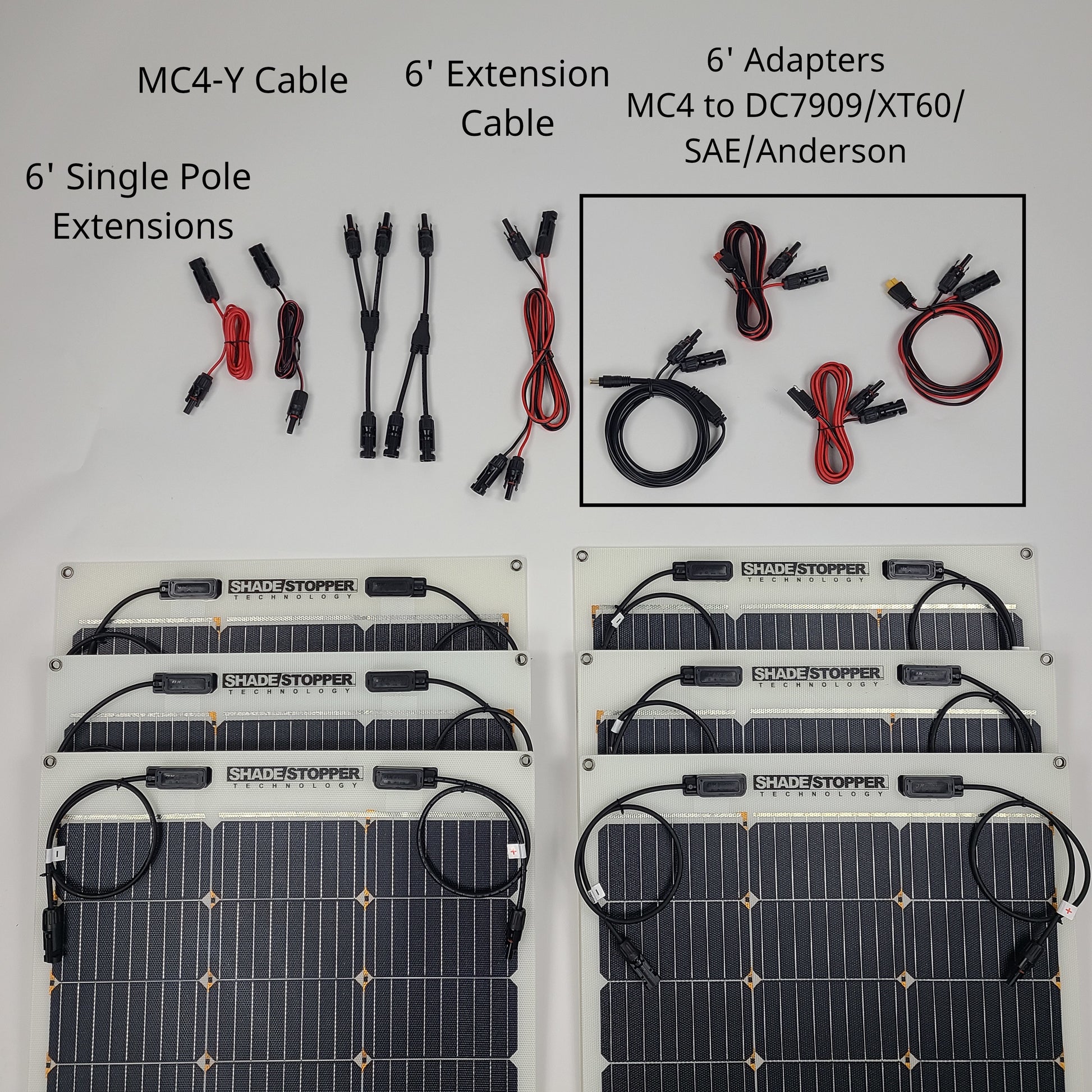

Whats in the box
x6 Shade Stopper Flexible panels
x1 of each 6' MC4-DC7090/XT60/SAE/Anderson adapter cable (14 AWG)
x1 MC4-Y combiner cable
x1 Simplified electrical setup diagram
Tech Specs
Series Mode
Voc: 142.56V
Isc: 5.55A
Vmp: 118.8V
Imp: 5.05A
Parallel Mode
Voc: 71.28V
Isc: 11.1A
Vmp: 59.4V
Imp: 10.1A

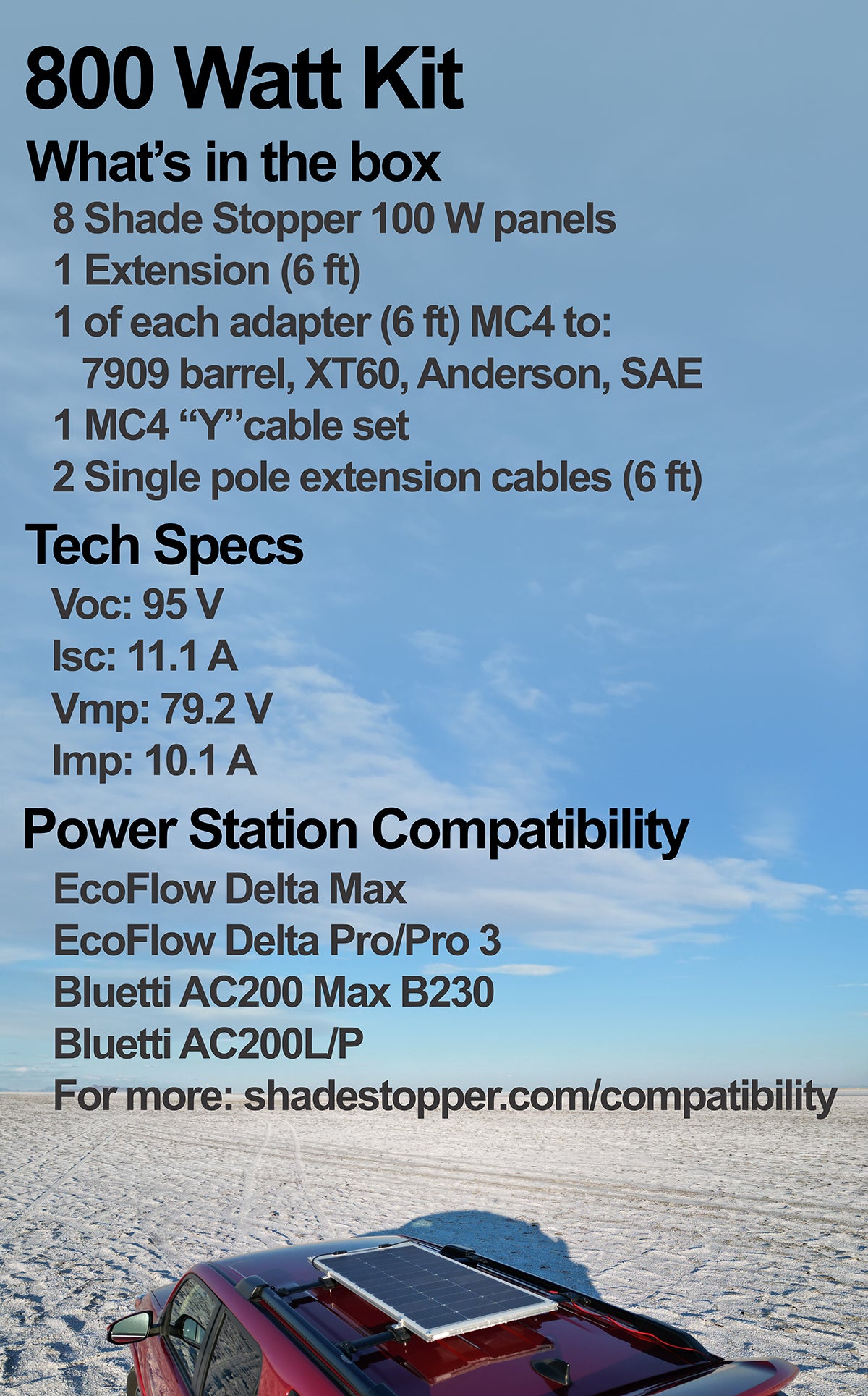

800W Kit
800W Kit
Best used for power stations such as: Ecoflow Delta Max, Bluetti AC200L, Ecoflow Delta Pro 3

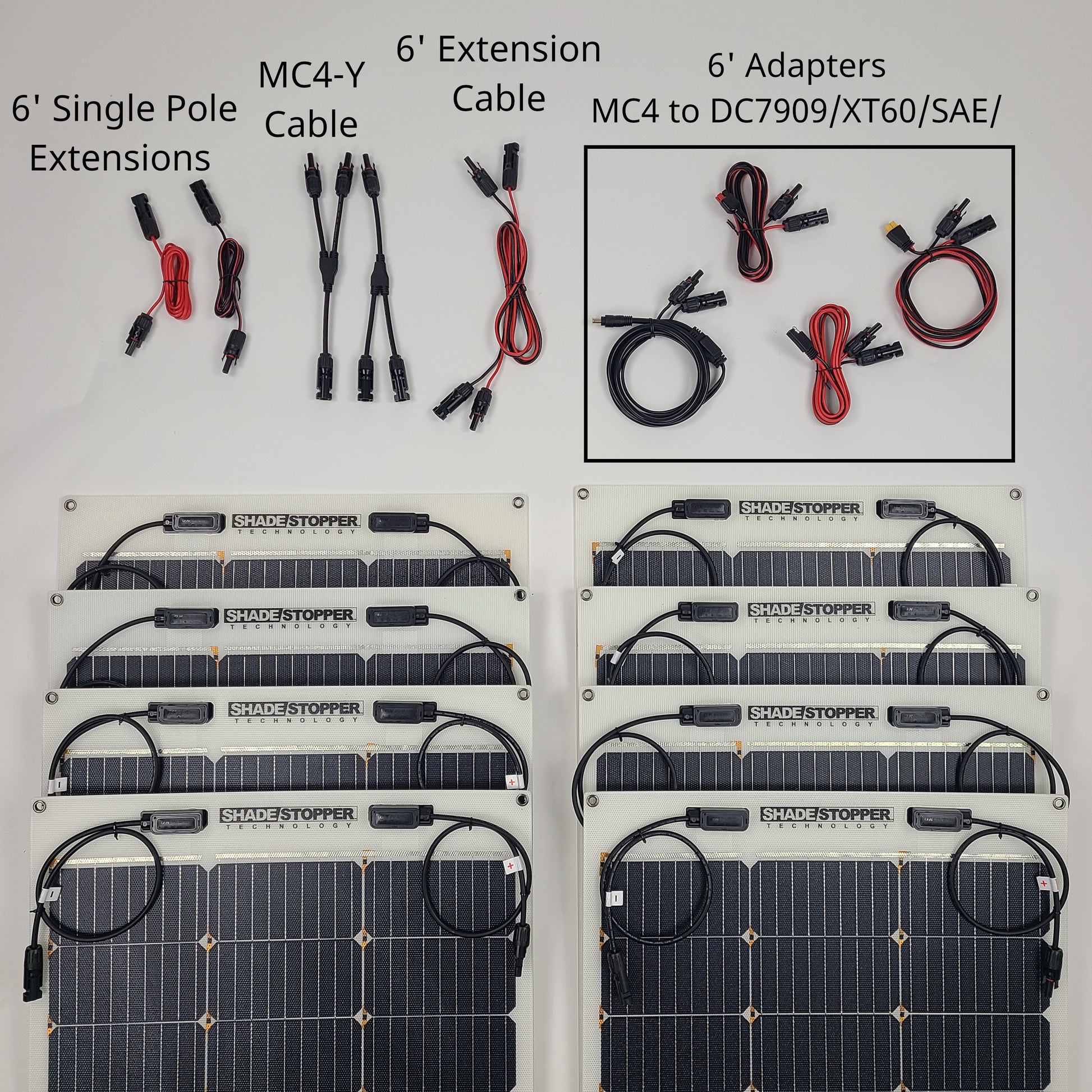

Whats in the box
x8 Shade Stopper Flexible panels
x1 of each 6' MC4-DC7090/XT60/SAE/Anderson adapter cable (14 AWG)
x1 6' extension cable (14AWG)
x1 Simplified electrical setup diagram
Tech Specs
Voc: 95.04V
Isc: 11.1A
Vmp: 79.2V
Imp: 10.1A
Cautions
Cautions
1) You must verify the power station you are plugging into is capable of taking this power load. Not doing this can damage your power station.
2) Check the connection status of every compenent of this kit. Do not use any portion of this kit if it becomes damaged.
3) Under normal conditions, the PV cells may be exposed to higher currents or voltages higher than test conditions. Therefore, when calculating the system connected to the panels, it is required to multiple the short-circuit current and open circuit voltage values marked by a factor of 1.25. Not doing this can damage your power station.
4) Use of these solar panels and kits are designed to use from -5°C to 85°C.
Share
Mounting Options
-
Flexible Mount for 100W Flex Panel
Regular price $47.00 USDRegular priceUnit price / per$67.00 USDSale price $47.00 USDSale -
Rigid Frame for 100W Flex Panel
Regular price $99.00 USDRegular priceUnit price / per$159.00 USDSale price $99.00 USDSale
Accessories
-
Cable - MC4 Extension, 25ft
Regular price $59.00 USDRegular priceUnit price / per
-
Do You Need an Adapter?
These kits (> 1 panel) come with every adapter we have!
MC4-DC7909
MC4-XT60
MC4-SAE (with polarity reverser)
MC4-Anderson
-
